200 ton H Type Eccentric Press with 135 mm stroke length, 900×1400 mm table dimension and 40 strokes per minute capacity

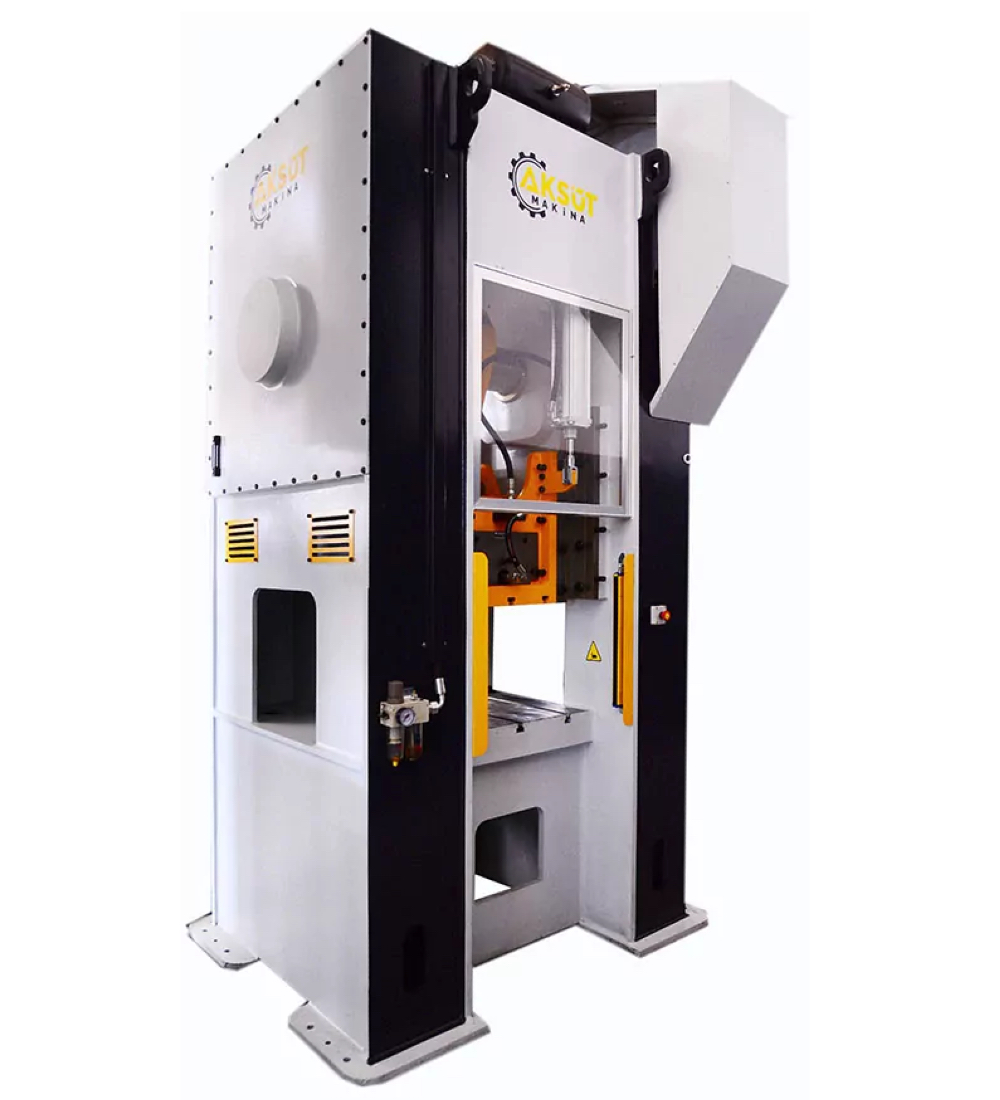

200 ton H Frame Press
H Frame Eccentric Press with 200 ton Capacity
200 ton eccentric presses are used in the huge plants for the production of heavy products. The mechanical presses are the must for all type of metal forming factories.Â
Our 200 ton H type eccentric press machines come with 80 mm strokes, which is adjustable. The press has the capacity of 30 strokes per minute, which also can be adjusted according to the need. The standard table size is 1200×1000 mm and the table ram distance is 500 mm.
Reasonable Prices
Fast Delivery Time
User Friendly Interface
After Sales Services
technical specifications
Capecity
200 ton
200 ton
Stroke Setting
80 mm
80 mm
Stroke per minute
30 str/min
30 str/min
Table Sizes
1200x1000 mm
1200x1000 mm
Table Ram Distance
500 mm
500 mm
Side Window
500x500 mm
500x500 mm
Main Frame
DIN ST52, DIN ST44
DIN ST52, DIN ST44
Crank Material
42CrMo4
42CrMo4
Ram Guide
8-sided
8-sided
Safety Light Curtains
4 pcs
4 pcs
Motor Power
18 kw / IE3
18 kw / IE3
