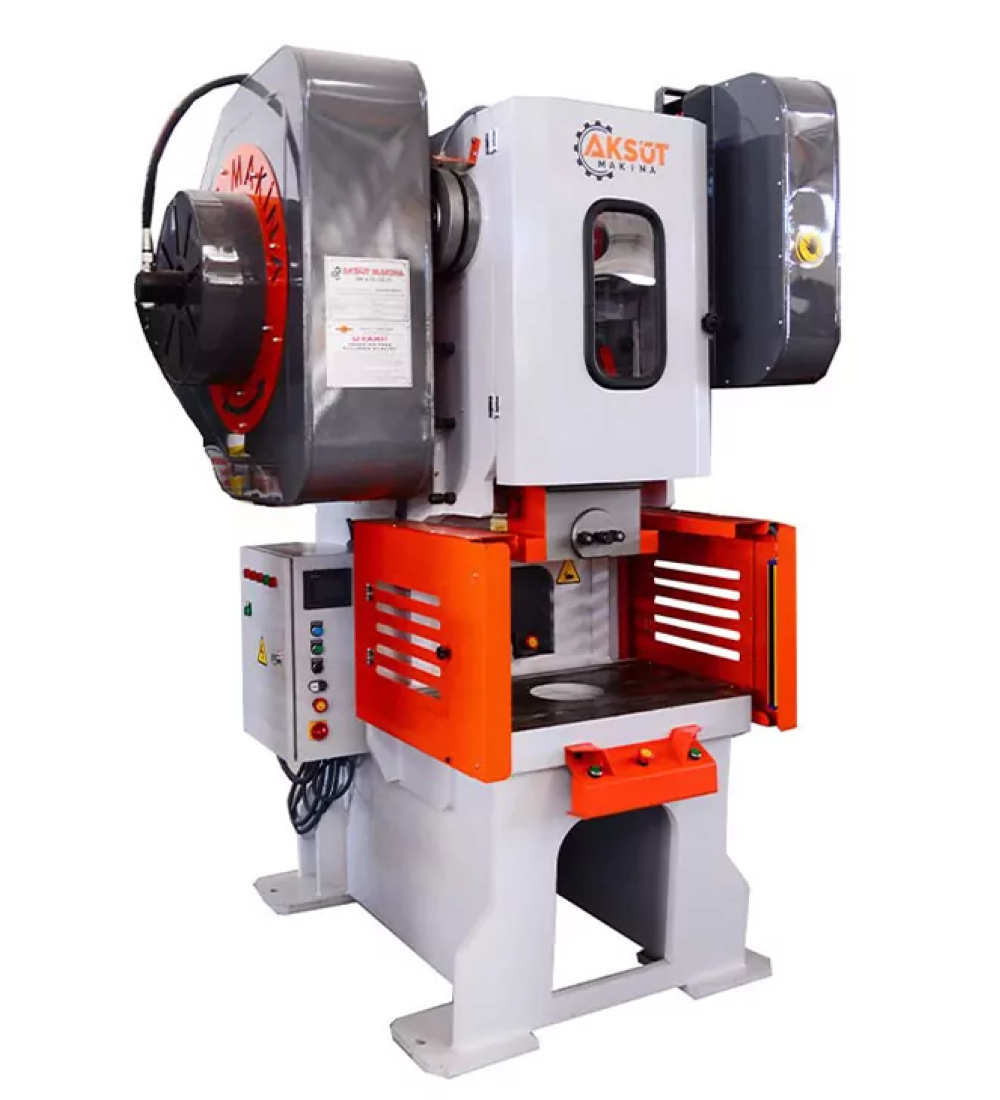

300 ton C Type Eccentric Press with 160 mm stroke length, 1400×1000 mm table dimension and 25 strokes per minute capacity
300 ton C Frame Press
C Frame Eccentric Press with 300 ton Capacity
300 ton C Frame eccentric presses are used in the giant factories for the production of heavy items. The mechanical presses are the must for all type of metal forming factories.Â
Our 300 ton eccentric press machines come with 0-160 mm adjustable strokes. The press has the capacity of 20-25 strokes per minute, which also can be adjusted according to the need. The standard table size is 1400×1000 mm and the table ram distance is 550 mm.
Reasonable Prices
Fast Delivery Time
User Friendly Interface
After Sales Services
technical specifications
Capecity
300 ton
300 ton
Stroke Setting
160 mm
160 mm
Stroke per minute
35 str/min
35 str/min
Table Sizes
900x1400 mm
900x1400 mm
Table Hole Diameter
280 mm
280 mm
Ram Hole Diameter
60 mm
60 mm
Throat Depth
510 mm
510 mm
Table Ram Distance
550 mm
550 mm
Motor Power
22 kw
22 kw
Weight
15800 kg
15800 kg
